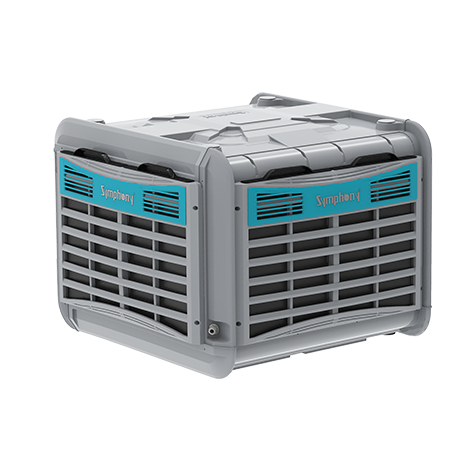

Venti-Cool 20U
- Modular units suitable for any area.One unit can cool up to 2000 sq.ft.*
- Cool Flow Dispenser for enhanced cooling
- Weather resistant UV Stabilized engineering plastic body
- 1.1 kW motor for powerful air delivery of 20000 CMH
- Four side cooling pads for superior cooling
- Symphony accessories for easy and quick installation in a couple of hours
- Product information shown in this page are under standard lab test conditions
Technical Specifications
| Discharge | Top / Down |
| Nominal air delivery (cmh) | 20000 |
| Cooling area (sq.ft.) | up to 2000 |
| Net weight (kg) | 53 |
| Operating weight (kg) | 115/89 |
| Input power supply (V/Hz/Ph) | 230/50/1 |
| Motor power (kw) | 1.1 |
| Outside dimensions (LxBxH in mm) | 1140 X 1140 X 850 |
| Air outlet dimensions (HxW in mm) | 670 x 670 |
| Body material | UV Stabilized Engineering Plastic |
| Tank capacity ([tr.) | 70/40 |
| Air moving device | Fan |
| Fan diameter (mm) | 620 |
| Cooling media | Honeycomb pads |
| Pad thickness (mm) | 100 |
| Cooling surface area of pad (sq.mtr.) | 1.6 |
| Minimum cooling efficiency(%) | 80 |
| Number of speeds (nos.) | 1 |
| Duct length (ft.) | upto 60 |
| Air outlets (nos.) | upto 8 |
| Container quantity (40HQ) | 60(SKD) |
| Product information shown in this page are under standard lab test conditions |
